BodyMed^® Mouthpiece Nebulizer Kit

Optional Accessories for the Compressor Nebulizer Systems

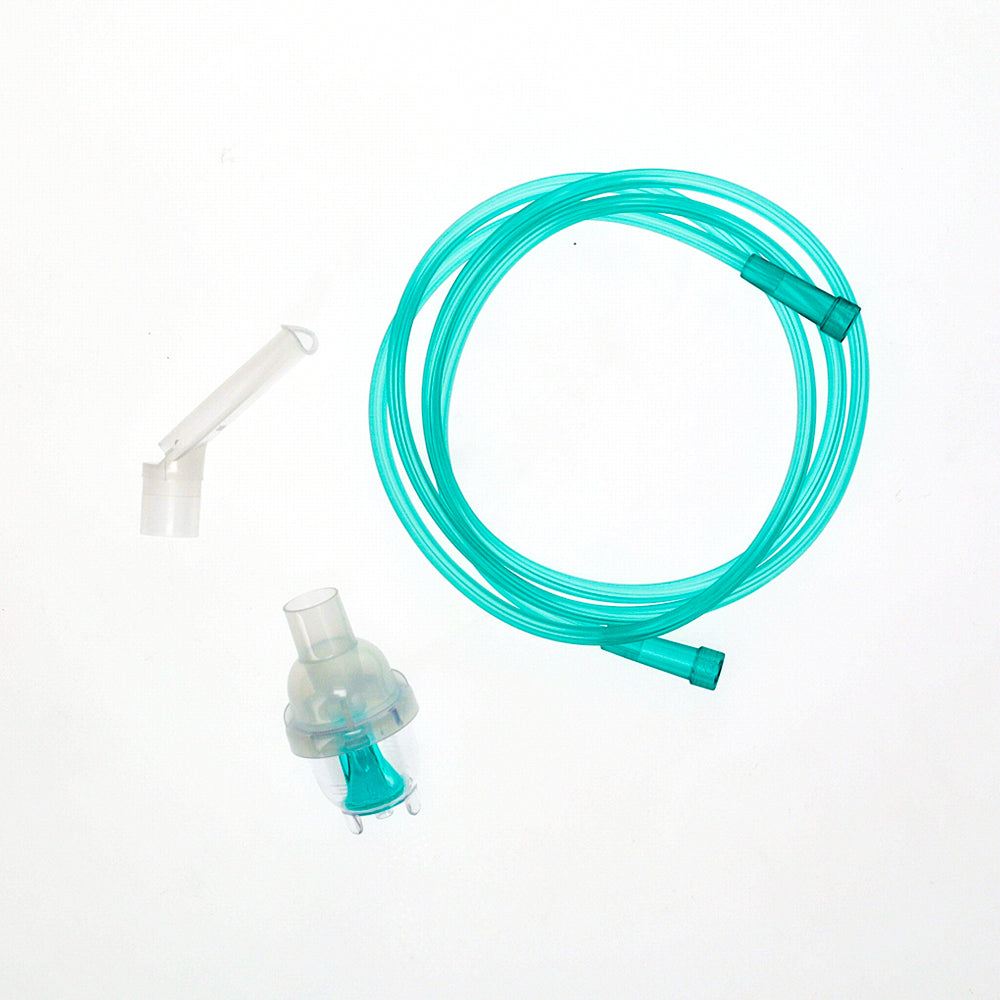

The BodyMed^® Mouthpiece Nebulizer Kit is intended for use in the treatment of upper and lower respiratory tract illnesses where aerosolized medication is required. Please consult a physician and/or pharmacist to determine if a prescription medication is approved for use with this nebulizer. This device is suitable for all ages and is intended for single patient use. The BodyMed^® Mouthpiece Nebulizer Kit includes 1 mouthpiece, 1 air tube (5.2 ft.), and 1 medication cup (6cc).

1 Air Tube, 5.2 ft. (1.6 m)

1 Medication Cup, .2 oz. (6 cc)

1 Mouthpiece

How to Use This Compressor Nebulizer

1. Set the nebulizer device on a flat, stable surface with the controls in reach.
2. Twist the top part of the medication cup counterclockwise to dissemble.
3. Fill the bottom part of the medication cup with the medication. Ensure that the cone is inside the bottom part.
4. Place the top part on the bottom and gently twist clockwise to reassemble the medication cup.
5. Attach one end of the air tube to the base of the medication cup.
6. Attach the other end of the air tube to the tube connector located on the front of the compressor.
7. Attach the mouthpiece or mask to the top section of the medication cup.
8. Place the mouthpiece in the patient’s mouth or secure the mask over the nose and mouth.
9. With the power switch turned “Off,” plug the power cord into an electrical outlet.
10. Press the power switch “On” to start treatment.
11. When finished, turn the nebulizer device off, and unplug it from the electrical outlet.

Transform Breathing Treatments with BodyMed^®

The BodyMed^® Mouthpiece Nebulizer Kit offers the peace of mind and relief that users depend on. Designed to provide smooth, easy, and quiet treatments, this nebulizer system can be used at home or on-the-go where there is access to an electrical outlet.



Product Specifications

Power

AC 120V/60Hz

Average Nebulization Rate

≥ 0.2 mL/min.

Compressor Pressure Range

30 psi–50 psi / 206kPa–345kPa



• Items work with both the BodyMed adult and pediatric nebulizer compressors.

Includes

• 1 mouthpiece
• 1 air tube (5.2 ft.)
• 1 medication cup (6cc).
